Innovators of Polygon Turning Attachment and Machines.
Ujwal Engineering is incorporated in the year 1995. We are dealing with Manufacturing of Polygon Turning Attachment (Special Purpose machine), Universal Joints, Auto Mobile parts, Machine tool Accessories and CNC turned components. We have registered our presence in the market as one of the eminent manufacturers and suppliers of high quality industrial components and machines that are high on performance and durable. We have come a long way backing on our ethical principles and are growing constantly.

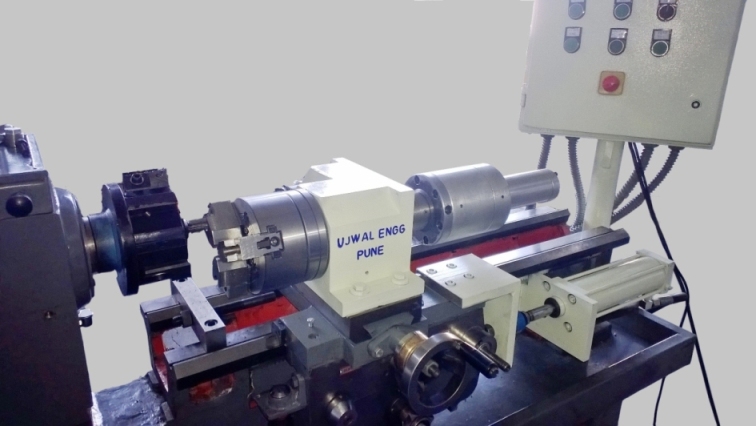

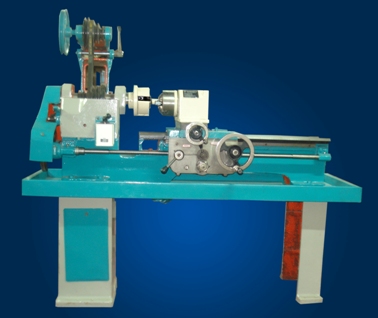

Automatic Polygon turning machine with Hydraulic power Clamping and feed. Milling from 2 flats to 12 flats can be done on this. It can be used for mass production.
In Hydraulic Polygon Turning Machine the power clamping and auto feed helps to increase the productivity and efficiency.

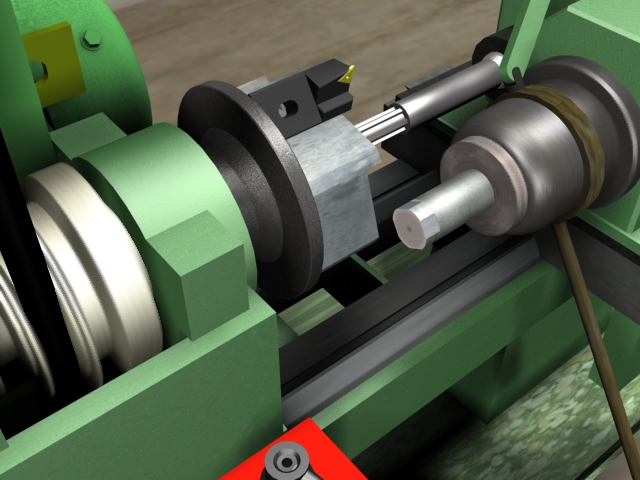

We are Manufacturer and Supplier of Polygon Milling Machine. Our main product is Polygon Milling Machine which is import substitute and export oriented. In general when we do milling the job is fixed and tool rotates and we index the job for multiple flats. On lathe job rotates and tool is fixed while round turning. This attachment is a combination of lathe and milling machine by which many advantages can be achieved.

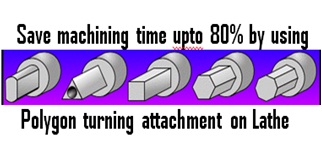

Making even number of flats:

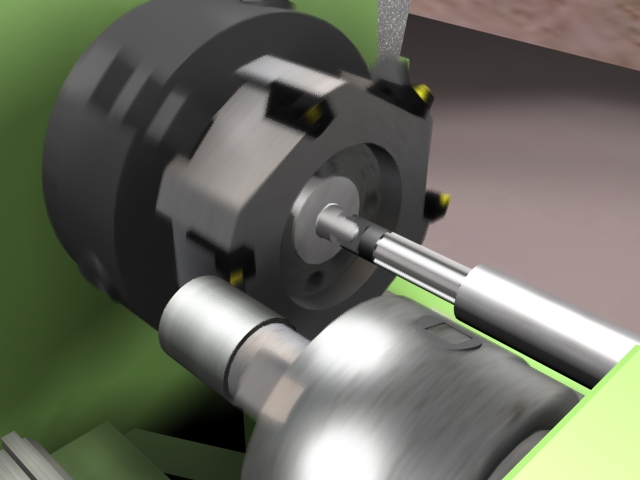

If we mount one cartridge on the pocket provided on cutter it will strike the job twice in one rotation as such one tool will make two flats in one stroke without indexing. The size of A/F can be achieved by giving a desired dept of cut by moving cross slide just like lathe. Length of flat can be done by using auto feed or manually of longitudinal travel.
Similarly if we mount two tools then directly a square will be cut in one stroke.

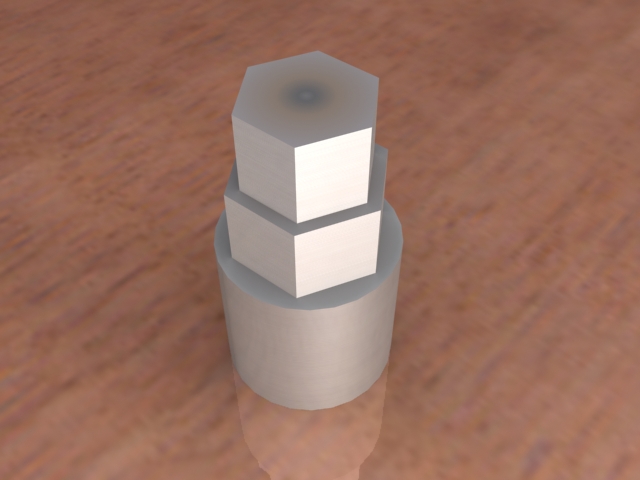

For Hex - mount three tools.
For octagon - mount four tools.
Like this up to 12 nos. of flats can be cut in one stroke without indexing.

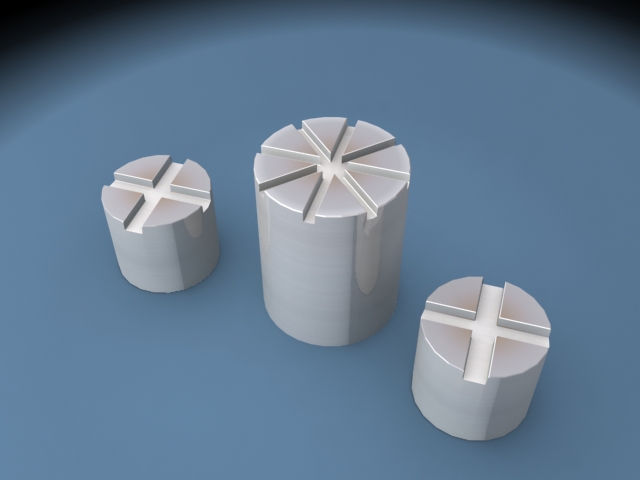

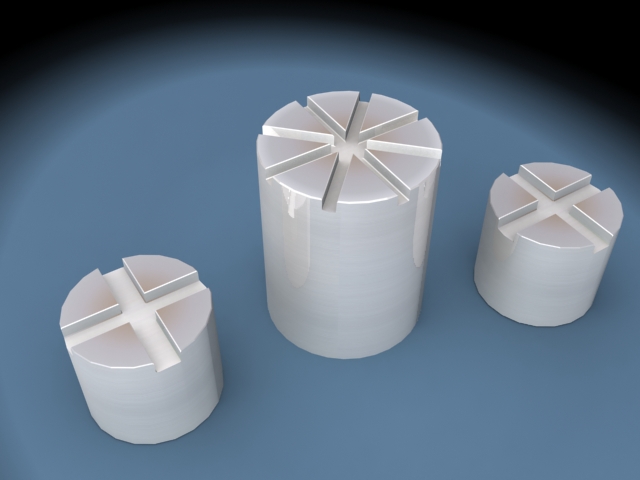

Slots on Face:
To make slot on face special groove tool is used which can be mounted on face of cutter.
In this case job is brought at the centre of the face of slot tool and plunge for depth of slot. If we put one tool it will be one straight slot on face. Like that two or three slots can be made at a time.
Uneven number of flats:

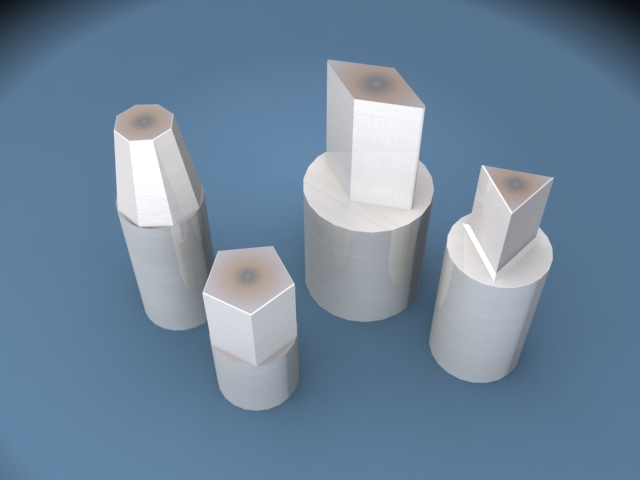

Uneven number of flat like one flat, triangle (3), Pentagon (5), heptagon (7) is cut in one stroke without indexing.
Polygon milling machine with Collet Chuck:
These attachments are supplied as per requirement. We provide this with Collet chuck as well.
Model: PTA 25, PTA 40, PTA 80
Bar Holding Capacity
25 if C-25 Collet chuck is used.
40 if C-40 Collet chuck is used.
Patent no.: Pending

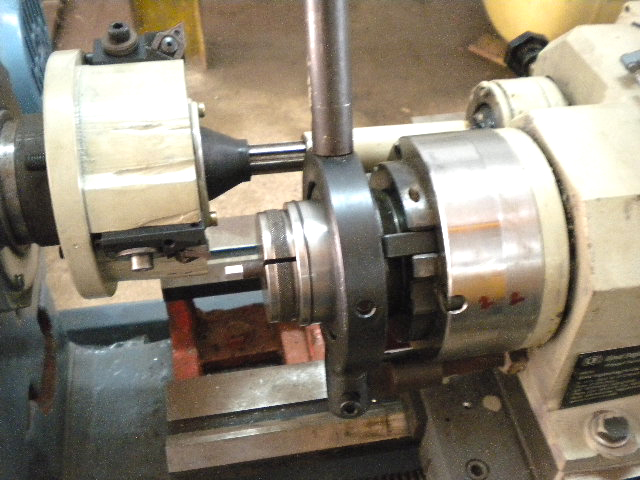

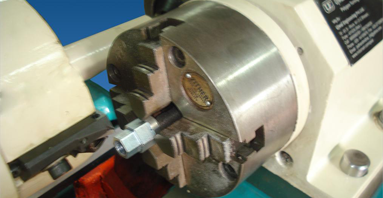

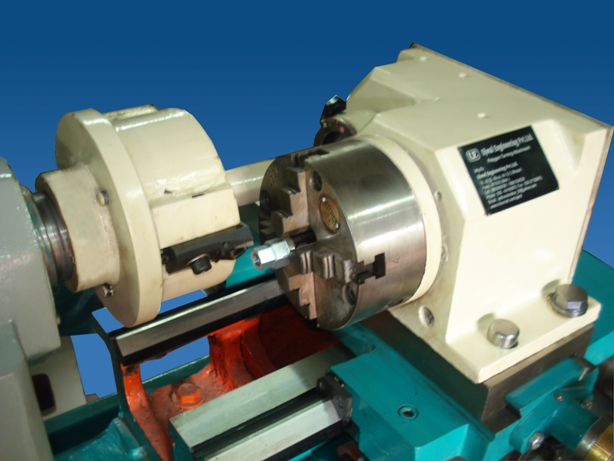

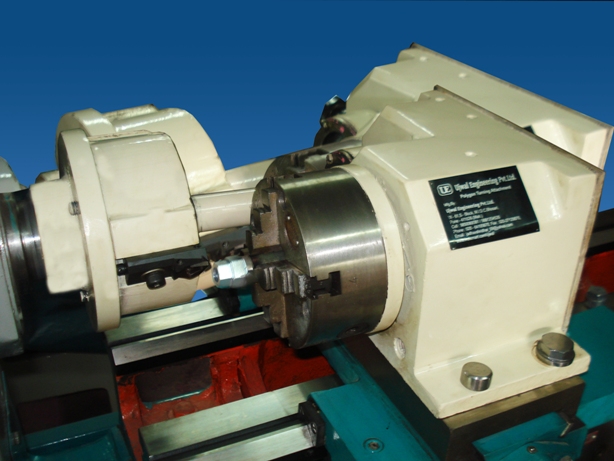

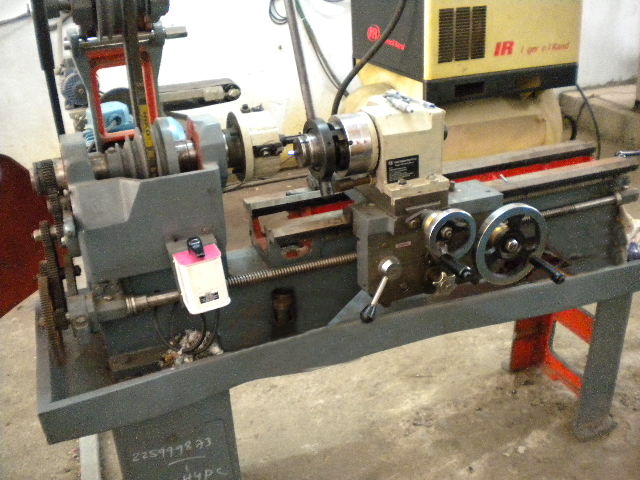

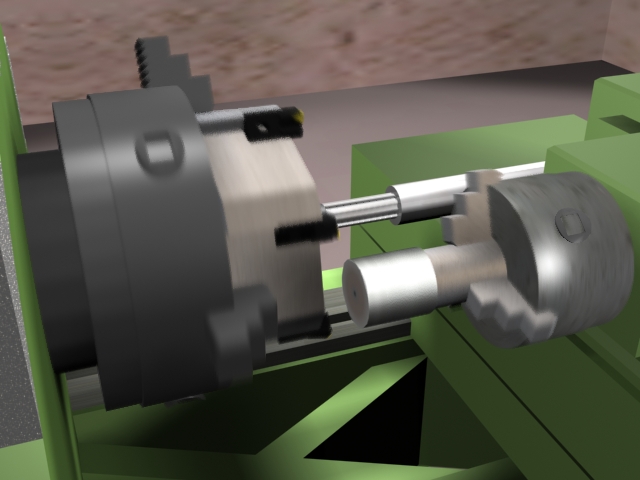

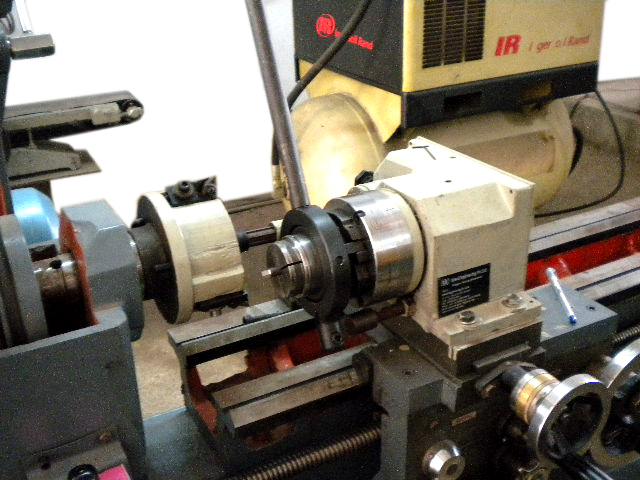

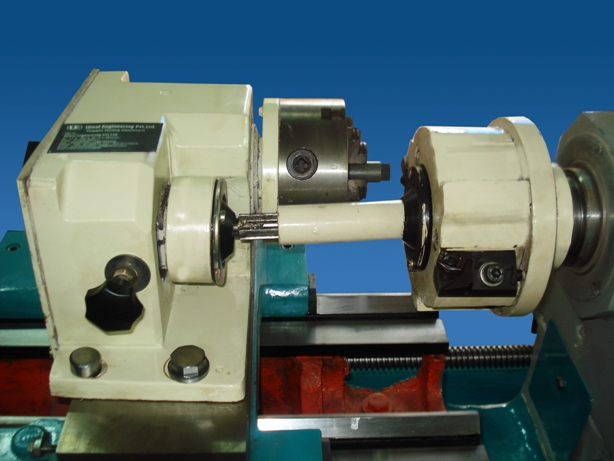

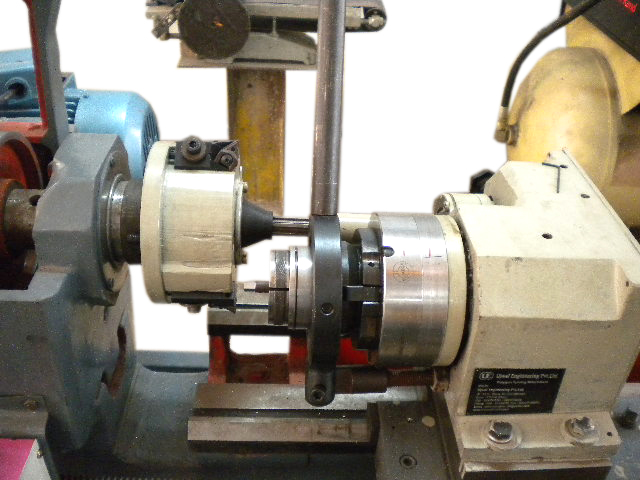

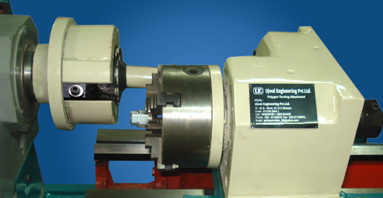

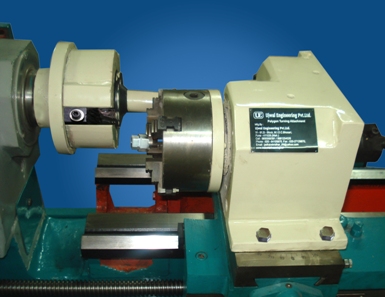

It is an attachment that can be mounted on the cross slide of center lathe or the milling table machine
Slots on face are cut in one stroke without indexing
It has polygon turning attachments for making even numbers of polygons
It also has L bracket that helps in easy mounting on the lathe machine and has 6 pocket standard cutter along with a tie rod to mount cutter

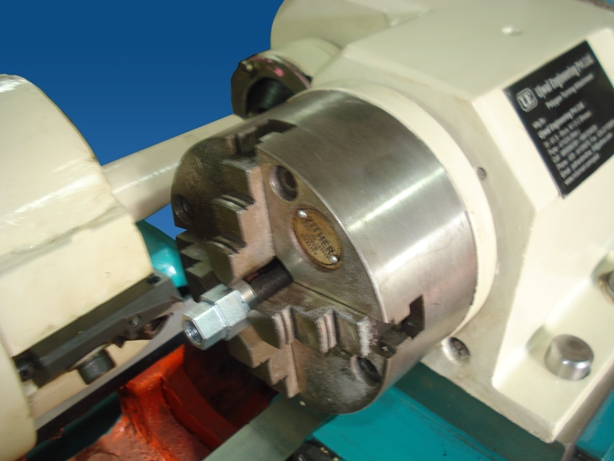

Other extra accessories that it is outfitted with are lever operated quick change collets chuck C-25 or C-40, hand operated 3 jaws self centering chuck 100 capacity and standard cartridges
Its special features are listed below:
Compared to conventional method production multiplies by three to four times.
- Since the machine works on dual rotational, single stroke operation it saves time which results in maximum production per unit working thus multiplies the production rate.
Operates on any manually operating machine
No skilled operator is required
Easy to operate
Excellent power saving capacity
Standard throw away inserts are used

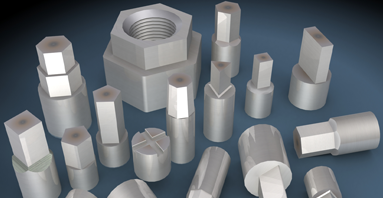

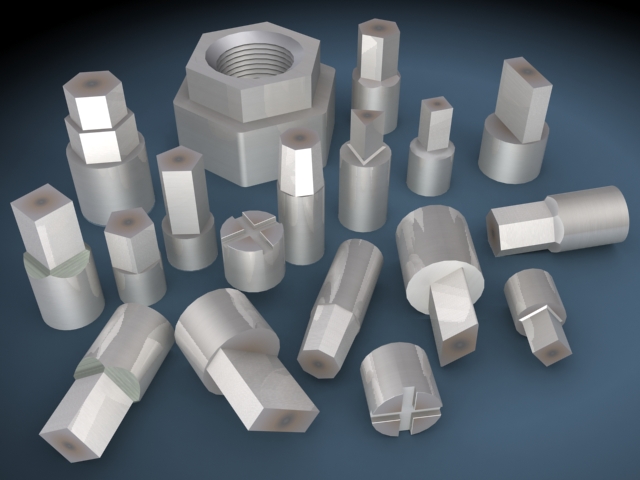

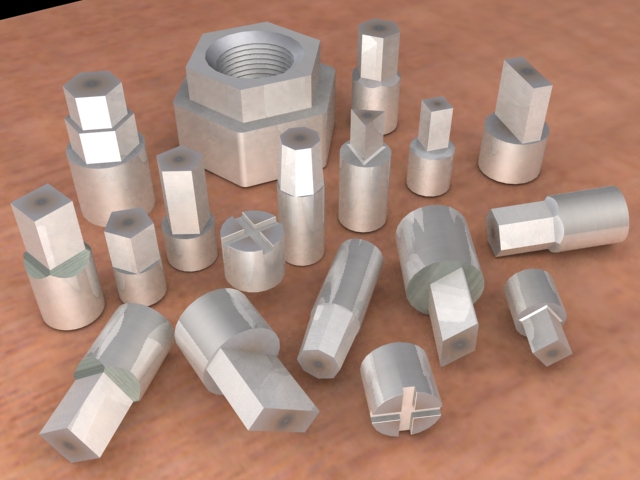

Output of Polygon Turning Attachments and Machines:
We also supply Polygon Milling Attachments without Lathe.
3» Universal Joints

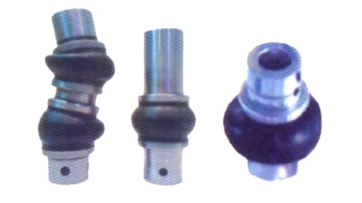

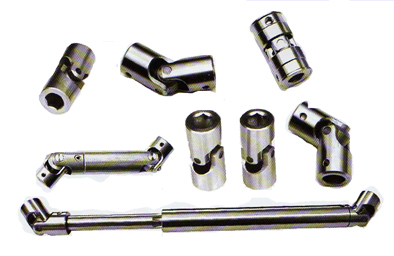

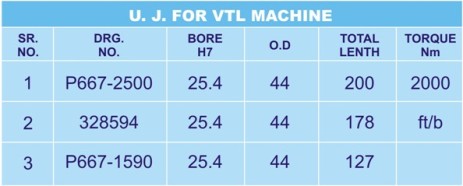

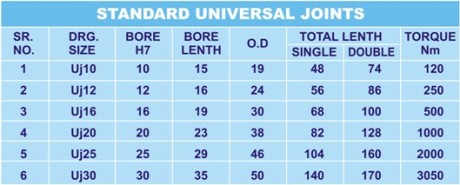

Universal joints provide simple and economic method of connecting two shafts whose axis are inclined at an angle. They are also used when the angle varies during rotation, eliminating the need for the complicated and expensive mechanism usually associated with this type of application. For both intermittent and continuously rated joints where constant lubrication (such as oil bath) is not available, joints covered with once grease packed will take care of lubrication throughout the life. On applications involving widely spaced bearing etc. The use of universal joints avoids the necessity for precise alignment there by considerably reducing assembly costs. Universal joints are frequently used in an agricultural machinery textile, multi spindle drilling machine, VTL Lathe, S.P.M., etc.
In order to accomplish diverse requirements of our esteemed customers, we offer these joints in numerous sizes and finishes. Our offered joints are valued for the features like durability, high tensile strength and robust construction.
We have an immensely wide client base that comprises of the eminent names of various industries. we have impressed them with our products and have also established a close rapport with them which enables us in understanding their needs in a proper manner. Some of the prominent names are mentioned below:
